Default Double timing sprocket

I'm trying to figure out what timing mark do I use it's a zero on the outer ring an then it's another one on the inner which is the timing mark

Old Feb 13, 2013 | 03:06 PM
  #2
PacerSS's Avatar
Monte Of The Month -- February 2012
5 Year Member3 Year Member1 Year Member
Joined: Jul 2010
Posts: 783
From: East Bay, CA
Default

Outer and inner make no sense to me. I know there's 3 sprockets, cam, crank, and balancer. Which ones are you talking about?

Old Feb 13, 2013 | 03:40 PM
  #3
Dam20735's Avatar
Thread Starter
|
1 Year Member
Joined: Aug 2012
Posts: 245
Default

Originally Posted by PacerSS
Outer and inner make no sense to me. I know there's 3 sprockets, cam, crank, and balancer. Which ones are you talking about?
The one that goes on the crank with the timing chain

Old Feb 13, 2013 | 03:51 PM
  #4
PacerSS's Avatar
Monte Of The Month -- February 2012
5 Year Member3 Year Member1 Year Member
Joined: Jul 2010
Posts: 783
From: East Bay, CA
Default

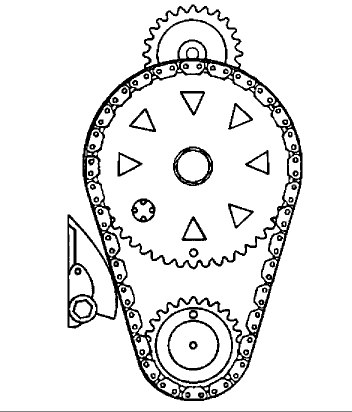

There's two 0 marks on both, you want them to point at each other when they come around. They are both keyed so they will only go on one way. Unless you got a dual rollmaster setup like mine.

Anyway the cam is a lot easier to turn without lifters and rockers pushing it down, so adjust it there until it lines up with the crank.

Like so:

Name:  crank_cam.gif
Views: 49
Size:  8.7 KB

Old Feb 13, 2013 | 03:53 PM
  #5
PacerSS's Avatar
Monte Of The Month -- February 2012
5 Year Member3 Year Member1 Year Member
Joined: Jul 2010
Posts: 783
From: East Bay, CA
Default

Oh and the second mark you are talking about on the very lip of it is for the oil pump gear. If you look at the timing cover there's a gear with a similar mark.

Old Feb 13, 2013 | 04:19 PM
  #6
Dam20735's Avatar
Thread Starter
|
1 Year Member
Joined: Aug 2012
Posts: 245
Default

Originally Posted by PacerSS
Oh and the second mark you are talking about on the very lip of it is for the oil pump gear. If you look at the timing cover there's a gear with a similar mark.
It doesn't have a mark it has number 6 4 2 0 2 4 6 on the inner lip an the same on the outer lip but they are different on the outer lip

Old Feb 13, 2013 | 05:59 PM
  #7
PacerSS's Avatar
Monte Of The Month -- February 2012
5 Year Member3 Year Member1 Year Member
Joined: Jul 2010
Posts: 783
From: East Bay, CA
Default

All that matters really is the timing diagram above. The oil pump gear will only fit on the right way.

Old Feb 13, 2013 | 06:09 PM
  #8
03SSLE's Avatar
Monte Of The Month -- August 2012
5 Year Member3 Year Member1 Year Member
Joined: Apr 2011
Posts: 6,074
From: Seattle
Default

Originally Posted by Dam20735
It doesn't have a mark it has number 6 4 2 0 2 4 6 on the inner lip an the same on the outer lip but they are different on the outer lip
The 6 4 2 0 2 4 6 on the sprockets is so that you can advance/retard the cam timing. Unless you are well versed on engine building and the engine was assembled from the start with the idea of running advanced/retarded cam timing it is something I suggest you do not attempt. Align the sprockets so that the '0' on each point to one another (like in the diagram Pacer provided) and you'll be all set.
