I am wondering if there is a forum member's archive or resource area where I might be able to find a good set of wiring diagrams for a 1988 Monte Carlo with the 305 motor?
Also any pointers to a similar set of good detailed wiring diagrams for a 1989 Chevy Caprice with the 305 TBI motor would be really helpful as well.
Thanks in advance.
I am working on two very unusual cars that were built using Monte Carlo and Caprice mechanical and electrical bits. The 1988 Avanti and 1989 Avanti. The 1988 Avanti cars were built on 1988 Monte Carlo chassis and running gear while the 1989 Avanti cars were built on 1989 Chevy Caprice chassis and running gear.

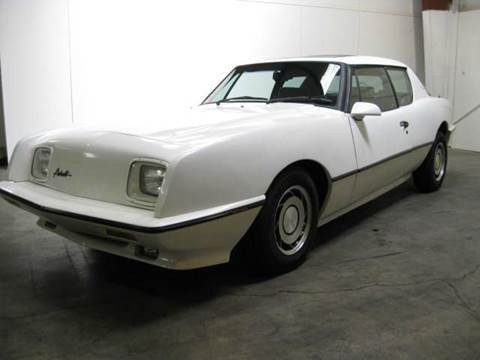

These cars looked like this:

My 1988 and 1989 cars looks like this but not as good condition
I also have a 1988 Coupe that looks like this but in much worse condition:

1988 Avanti Coupe

These cars were built in Youngstown Ohio from late 1987 to 1990 and as I said they were built using the chassis and running gear and electrics from brand new 1988 Monte Carlo cars and 1989 Chevy Caprice cars for 1989 & 1990. I am trying to chase down some electrical problems but I am having a real problem trying to locate good detailed wiring diagrams for these GM based cars.
