Parking brake bypass relay wiring ... HELP !....
#1
![Arrow](https://montecarloforum.com/forum/images/icons/icon2.gif)
Hello guys.. I want to make it clear first...
I AM NOT mgood at electrical......![ROTFL](https://montecarloforum.com/forum/images/smilies/lmao.gif)

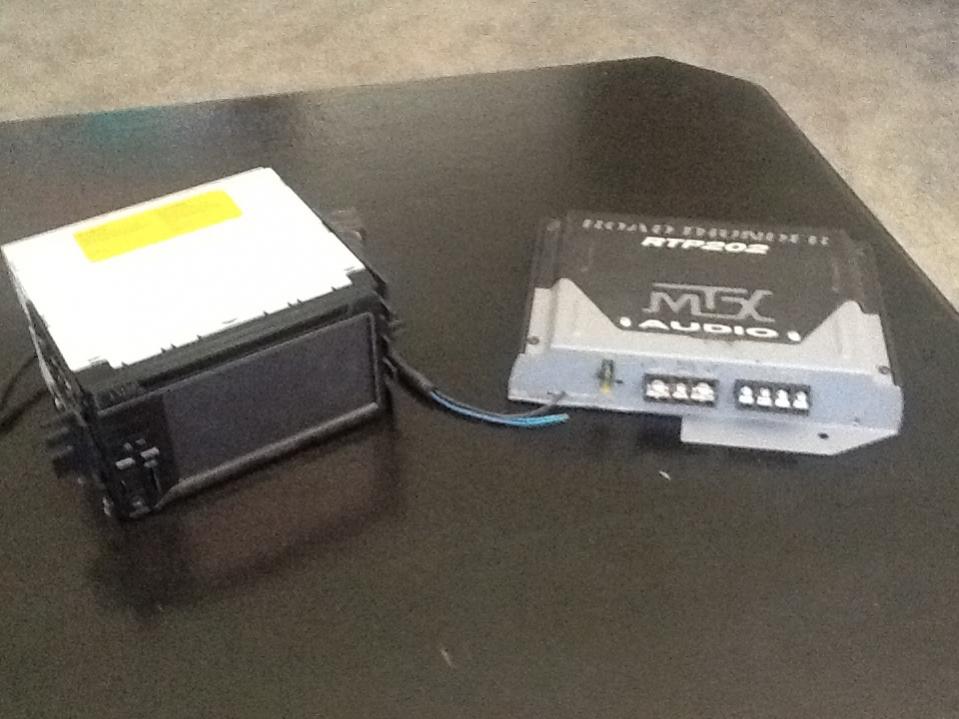

That being said, I have a question. I bought a Pioneer AVH3300BT double Din aftermarket stereo for my Monte.... I also bought a parking brake bypass and a small amp for my subs, just for a little added bass. I had the stereo installed by best buy (my son works there and he got a deal on the install) now I want to hook up the amp and the bypass switch. The bypass switch has 3 wires on it, a blue, Green and a black. Do I have to "Unhook" the wires that are currently connected to the parking brake switch ( that was done during the install) and wire the stereo wires to the bypass switch instead of the parking brake ? If so, what wire goes where from the head unit? The bypass is for a rear view camera that I'm installing.
Next, the amp is just a lil one, a MTX Rt202. I bought it from another member on the Monte Forum. I pretty much know how this is wired, but want to make sure that I'm doing it correctly. It has a terminal for the "remote on". Do I hook up the Blue/White wire from the head unit to this ? What gauge does it need to be to be safe ?( again, it's just a little amp ) then just hook up the positive/negative wires?
What gauge should they be for a small amp?![Confused](https://montecarloforum.com/forum/images/smilies/confused.gif)
I thank you in advance for any help I can get...![Thumbsup](https://montecarloforum.com/forum/images/smilies/thumbsup.gif)
